Beschreibung

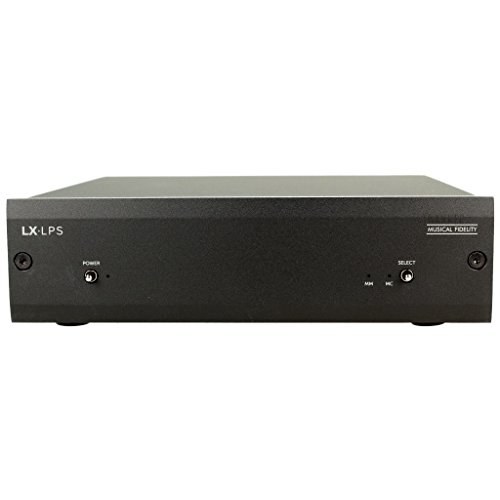

The LX-LPS is a very high performance MM/MC phono stage with TWO turntable inputs. Each input has an extra pair of input sockets so you can achieve exact impedance matching. The circuitry is derived from the MX-VYNL so it is unsurprising that the technical performance is outstanding.
- Separate MM/MC
- selectable inputs
- Extremely accurate RIAA extending out to 80kHz
- Distortion is negligible from 20Hz – 20kHz
- Excellent overload margin
- Excellent channel separation
- Customisable loading plugs
- Beautiful build quality
Technische Daten:

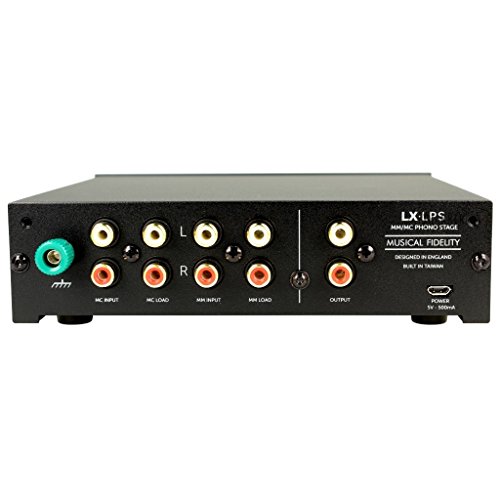

MM Input Impedance 47 KOhm Input Sensitivity 3.0mV Total Harmonic Distortion 0.01% Signal to Noise Ratio >80dB Input Overload Margin 15dB MC Input Impedance 100 Ohm Input Sensitivity 0.3mV Total Harmonic Distortion 0.01% Signal to Noise Ratio >70dB Input Overload Margin 22dB General RIAA Response +-0.25dB Power Requirement 5V 500mA Connections Moving Magnet Input 1pr RCA sockets Moving Magnet Loading 1pr RCA sockets Moving Coil Input 1pr RCA sockets Moving Coil Loading 1pr RCA sockets Power Input Micro USB Dimensions Length (including terminals) 197 mm, Width 172 mm, Height (including feet) 46.5 mm Weight (Unpacked / packed) 1.05 kg/ 1.50 kg Included accessories Power Supply 2 x 100Ohm RCA Plugs (Green for MC loading) 2 x 47pF RCA Plugs (Blue for MM loading)
LX-LPS – Technische Daten
Moving Magnet
o Eingangs Impedanz: 47 K?
o Eingangs Empfindlichkeit: 3.0mV
o Verzerrungen (THD): 0.01%
