Beschreibung

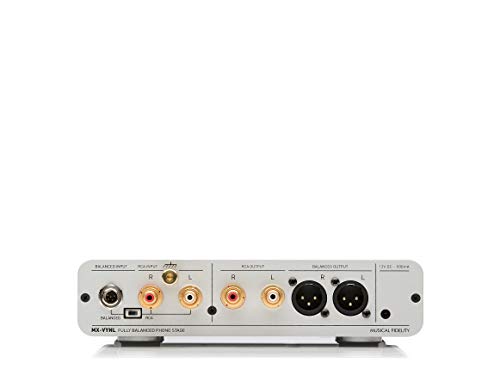

The MX-VYNL is a fully balanced, very high performance phono stage, able to operate with virtually any moving coil or moving magnet cartridge. With both traditional RCA inputs and our unique XLR fully balanced connection the MX-VYNL can be connected to 2 turntables simultaneously.

The MX-VNYL offers a wide range of input impedance settings for moving coil cartridges as well as several capacitance settings for moving magnet units. Unlike many of our competitors units the MX-VYNL allows easy adjustment of these settings while playing. This allows easy experimentation and tuning to find the optimum setting for all your equipment.

The MX-VYNL also includes our renowned RIAA correction that offers extremely accurate results to beyond 80kHz. That may sound extreme, but there is a good deal of information above 20 kHz that needs correction. If it isn’t corrected, it will show itself as ringing and overshoot.

With both extraordinarily low noise and exceptional overload margin the MX-VYNL can comfortably handle even the most demanding of cartridges and satisfy the most discerning of listeners.

Technische Daten:

Output4 Volts RMS single ended from RCA sockets 8 Volts RMS balanced from XLR sockets PerformanceFrequency response: RIAA +-0.1dB IEC +-0.1dB MMChannel separation: < -86dB SNR A-wtd: < -101dB THD: < 0.007% XLR input: 5mV / 2.5mV selectable 70mV max (23dB headroom) MCChannel separation: < -83dB SNR A-wtd: < -98dB THD: < 0.01% XLR input: 0.8mV / 0.4mV selectable, 12mV max (24dB headroom) InputsBalanced Mini-XLR, RCA 1 pair RCA sockets OutputsBalanced XLR male sockets EIA Standard RS-297-A, RCA 1 pair RCA sockets PowerConnector: 1.3mm pin DC power jack Outboard power supply: 12V/500mA DC Mains voltages 100-240VAC 50-60Hz universal worldwide supply Consumption < 8 watts Weight (unpacked / packed): 1.9Kg / 2.4 Kg Dimensions W H D220 mm, 53 mm, 215 mm Included accessoriesMains adaptor, Manual [amz_corss_sell asin="B015YOJ0CA"]
