Beschreibung

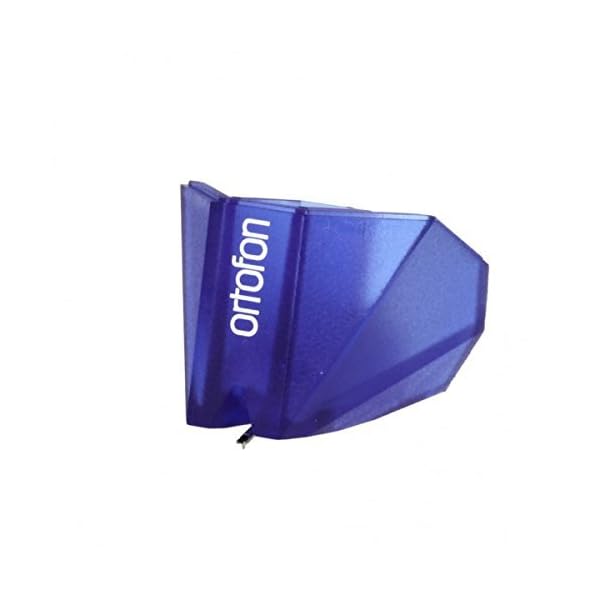

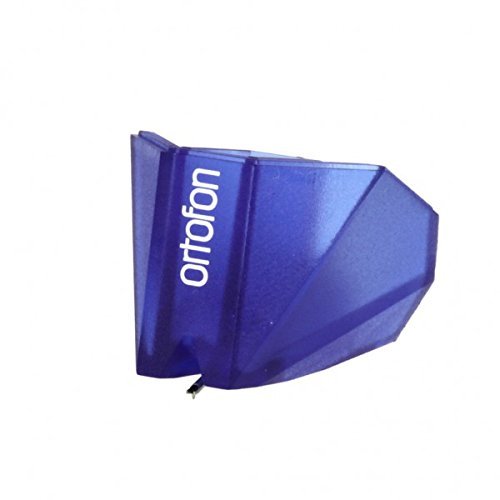

Ortofon Stylus 2M Blue
Technical specifications
Technical specifications
Frequency range – 20-25.000 Hz
Frequency response – 20-20.000 Hz + 2 / – 1 dB
Tracking ability at 315Hz at recommended tracking force *) – 80 µm
Compliance, dynamic, lateral – 20 µm/mN
Stylus type – Nude Elliptical
Stylus tip radius – r/R 8/18 µm
Equivalent stylus tip mass – 0.5 mg
Tracking force range – 1.6-2.0 g (16-20 mN)
Tracking force, recommended – 1.8 g (18 mN)
Tracking angle – 20°
Stylus colour – Blue
Recommended for following cartridges – 2M Blue, interchangeable with 2M Red.
Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance.
*) Typical value
Ersatznadel für Ortofon 2M Blue Tonabnehmer.
Nackter elliptischer Diamant.
Austauschbar mit dem Stylus 2M Red.
